Remedial Wall Ties

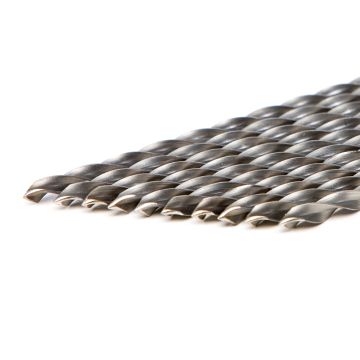

Easi-Fix Helical Drive Tie is a 304 stainless-steel finned helical tie. It is designed to be used to anchor building façades to structural members, stabilise multiple width brick walls or as remedial wall ties to re-tie a wide range of differing materials like air-crete blocks, clay bricks, stone, concrete blocks and timber studs.
The Easi-Fix Helical Drive Tie is installed using a proprietary setting tool that is used with an SDS-Plus shank hammer drill to drive and countersink the tie. The helical design allows the tie to be driven quickly and easily into a 5.5mm pre-drilled pilot hole. As the tie is driven into the substrate, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads.
Once installed the Easi-Fix Helical Drive Tie provides a mechanical connection between a masonry façade and its backup material or between multiple widths of brick.
The Easi-Fix Helical Drive Tie is the faster, easier and more reliable way to tie facades together.
Installation of Helical Remedial Wall Ties
To Install the Permagard Easi-Fix Helical Drive Ties you will need to drill a 5.5mm pilot hole into the substrate and use the Easi-Fix Helical Drive Tie SDS Install Tool.
Please note that in some dense substrates (engineering bricks) it may be necessary to drill a 10mm countersunk hole into the substrate approximately 10-20mm so the head of the tie can be completely lost in the substrate and does not protrude from the surface.
For installation of Permagard Easi-Fix Helical Drive Ties, a light hammer drill is recommended i.e. no more than 1.5NM impact and not less than 3000 impacts per minute.
Easi-Fix - Specialist Solutions. Made possible.
If you have any questions about the types of wall ties you need or how to replace failed wall ties then contact our technical experts on 0117 982 3282.
At Permagard, we stock a wide range of structural repair products and are always happy to offer advice. Our Easi-Fix range is trusted by professionals to provide the confidence you need when it comes to structural repair.
- Austenitic 304 Stainless Steel
- Quick and easy installation
- No mechanical parts
- No resin or neoprene (high fire rating)
- Effective solution for tying cavity and solid walls
- Rapid installation, simply drill and drive
- Low installation costs
- Can be installed through cavity insulation
- Multi water drips across the tie
- High tensile strength with flexibility
- Allows for thermal movement
- Designed and tested to DD140
Model: WTHDT- SKU WTHDT Manufacturer: Permagard Packaging: box of 100 Size: 8mm x 195mm, 8mm x 220mm, 8mm x 245mm, 8mm X 275mm, 8mm X 295mm Coverage: For use as replacement wall ties use approximately 2.5 ties per m² of wall surface Country of Manufacture: United Kingdom
Easi-Fix Helical Drive Tie Data Sheet (870.1 KB)
