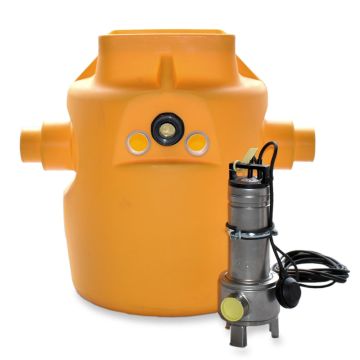

PermaSEAL Foul Sump Station

Foul Water Pumping System

The PermaSEAL Foul Pump is an effective way of moving sewage water to where it needs to be. As a high-quality foul water pumping system, it allows you to move foul and sewage water either horizontally or upwards, or remove it altogether.

The foul sump has a depth of 800mm, and the high-quality sewage pump can comfortably discharge to a head height of 6 metres. Optimal range would be up to a 5.5 metre head pumping at a volume of 4 litres per second. (This will depend on pipe work to exit point).

How does the foul pump work?

The HPDE sump chamber collects the foul water. When required, the single pump kicks in and moves the foul water from the chamber towards the mains sewer or a larger storage chamber. This gives homeowners peace of mind that they are protected.

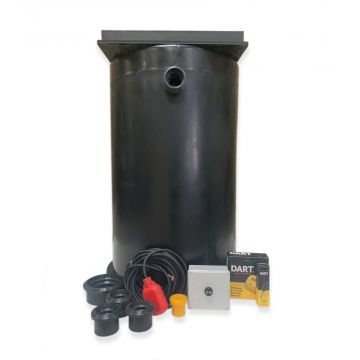

What's in the box?

• HDPE Sump Chamber 800mm x 1000mmm (inc. inlet points)
• High-quality D10SA foul vortex sewage pump
• Internal pipework including non-return valve

Uses of the foul water sump

This sewage pumping station with a single pump is suitable for domestic basement applications where grey water or sewage needs to be pumped vertically or horizontally from the basement or subterranean space to the main sewer or larger collection chamber.

Important note: This foul pumping system is not designed to provide 24-hour storage when used for sewage, so it isn’t suitable for managing all of a household’s waste. For full sewage handling, consider a whole-house pumping system instead.

Optional AlertMaxx 2 Foul High Water Level Alarm

A highly intelligent and fully compatible high water level alarm. It is designed to alert homeowners when the water level in their foul sump station becomes too high and there is a risk of flooding. It also offers several other highly innovative and specialist features.

For further information on this highly sophisticated Foul high water level alarm please see the product page here.

Note: We are offing an exclusive price on this alarm system when purchased in combination with our foul sump system. This offer is not available separately.

Installing a sewage pump

The chamber is sited on a concrete base, inlets in the form of 110mm pipework are connected into the chamber, a 50mm discharge pipe connects to the gravity drain and a 50mm cable duct to bring electrics from the chamber into a dry environment. The chamber is vented via a 50mm duct to the same standard as a traditional SVP. An air admittance or ‘durgo’ type valve should not be used.

The chamber is filled with water to prevent buoyancy and is surrounded with concrete. A simple rule of thumb is that the top of the chamber should be level with the structural slab or no deeper than 500mm from the final finishes. The installation is completed with a double sealed cover supplied by the contractor to tie in with the general floor finish. Remember this product needs to be accessed for service so care should be taken with the location.

Note: For more information on sewage sump pump systems, read our guide to foul sump pump installation.

TIP: Add the concrete in stages and add corresponding amounts of water to the chamber.

Foul Sump Maintenance

The efficiency of the foul sump system can be improved and its lifespan extended with regular care and maintenance.
