Newton Basedrain Drainage Channel 2m

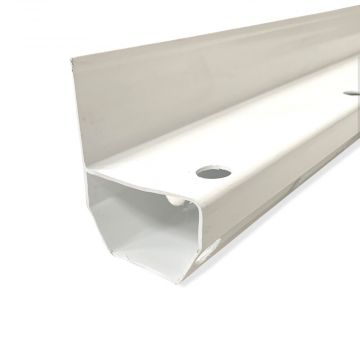

Basedrain – Newton Drainage Channel

Installed at the wall–floor junction, Newton Basedrain provides effective perimeter drainage by directing water safely to a suitable discharge point. When used in conjunction with jetting eyes, it forms a fully maintainable system compliant with BS 8102.

Dimensions

Width (main body): 77mm
Width (including spacers): 84mm
Height (main body): 50mm
Height (including upstand): 50mm
Length: 2000mm

Note: Where the floor build exceeds 65mm, a condensation strip should be used to collect condensation from the waterproofing membrane.

Also available: Newton Flexi Pipe (63mm), designed to connect the Basedrain channel to a sump chamber via a suitable adaptor.
