Cavity Drain Membranes

Membranes for a Cavity Drain System

Cavity drain systems are an effective way to protect below-ground spaces from water ingress and flooding. Permagard’s complete PermaSEAL® cavity drain membrane range features membranes with varying stud heights to meet drainage capacity requirements. We also provide mesh and clear membrane options, depending on your desired finish.

From high drainage capacity to fully recycled eco options, professionals trust PermaSEAL® cavity membranes to meet their requirements.

Cavity drain membranes for walls and floors are a key component of a cavity drain system, along with a sump pump and basement drainage channels. They can be installed in new build basements and retrofit conversions, achieving a fully maintainable Type C waterproofing system. Once fixed to internal walls and floors, the membranes efficiently channel water ingress to the drainage channels below. This protects the space and any possessions from water damage.

If you’re looking for protection from gas, check out our gas membranes.

Membranes designed to take different finishes

We manufacture PermaSEAL® cavity drain membranes to suit different finishes. They can accommodate renders, dot and dab plasterboard, batten and board or be used behind false walls.

• PermaSEAL 8 Mesh Membranes - designed to take dot and dab plasterboard finish. They also provide an excellent substrate for lime mortars, renders & plasters.
• PermaSEAL 8 Clear Membranes - can be used for batten & board, behind metal lath systems and false walls, or a plasterboard finish.

Our cavity drain membranes can be used on walls, floors, vaults and tunnels.

Working on a larger project? Save with our cavity drain membrane bulk deals - discounted pricing on membranes and when you buy in volume.

PermaSEAL® waterproofing membranes can also be used in conjunction with external waterproofing products to provide waterproofing for external foundation areas of buildings.

Cavity Drain Wall Membranes

Our range of cavity drain wall membranes includes:

• PermaSEAL 7 - diagonal stud cavity drain tanking membrane that forms part of a Type C system in accordance with BS 8102:2009.
• PermaSEAL 8 Mesh - designed for direct rendering or dot and dab finishing
• PermaSEAL 8 Eco Cavity Drain Membrane - 100% recycled cavity drain membrane for basement walls and floors.

Cavity Drain Floor Membranes

An effective system requires a suitable floor cavity drain membrane. These floor membranes tend to have larger stud profiles to cope with large volumes of water ingress.

• PermaSEAL 8 Eco Cavity Drain Membrane - 100% recycled cavity drain floor membrane
• PermaSEAL 20 Floor Membrane 20m² and 40m² - highest drainage capacity in the PermaSEAL range with a void volume of 14 litres for each square metre.

Browse our Basement Floor Membranes.

PermaSEAL Cavity Drain System

PermaSEAL cavity drain membranes are designed to be used below ground as part of a cavity drainage system (Type C waterproofing). To provide reliable, drained protection, they need to be used in conjunction with:

• Sump Pumps and accessories

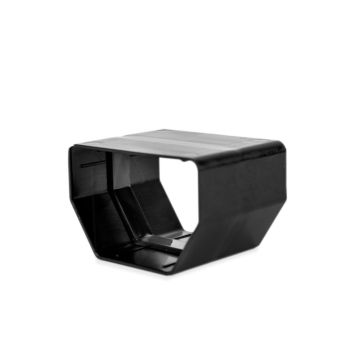

• Basement drainage channels

These ensure that water is safely evacuated from the structure.

Eco Credentials

Permagard are taking steps to be more sustainable as a business. Wherever possible, we provide high-quality recycled options that reduce demand for new raw materials. Our flagship choice is the PermaSEAL® 8 Eco Cavity Drain Membrane (also available in bulk packs). Manufactured from 100% recycled HDPE, it’s a premium cavity drain membrane for walls and floors that helps cut reliance on the energy-intensive production of virgin HDPE. We’re so proud of it, we’ve put the PermaSEAL® name on a distinctive eco strip.

Choosing PermaSEAL® 8 Eco supports circular material use while delivering the quality and reliability professionals expect from PermaSEAL®. It integrates seamlessly into maintainable Type C waterproofing designs, giving you a robust, sustainable option without compromising on system performance or finish.

Construction and Installation

Our membranes are easy to install on most substrates, with minimal preparation. To find out more about installing a cavity drain system, then read our Complete Guide to Type C Waterproofing.

PermaSEAL - Complete Solutions. Made Possible.

Our PermaSEAL cavity drain membranes are trusted by professionals, meeting the highest quality levels. We have excellent stock availability across our range. Shop now, and benefit from a quality solution achieved through technical excellence.

Our expert technical team are happy to help with specifications and provide advice about installing a cavity drain membrane system - call us on 0117 982 3282.

Explore our full range of basement waterproofing products.
