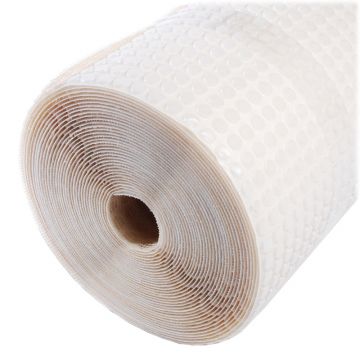

Newton 503 Mesh Membrane 40m²
This 3mm membrane is primarily used in damp and water proofing projects where space is an issue. The smaller stud height and ability to fix to the wall makes this membrane a user friendly and fully comprehensible choice.

Read More

Availability: >In stock


RRP £390.00 Ex VAT
£245.00 Ex VAT £294.00 Inc VAT


Meshed Damp Proofing Membrane

Newton 503 Mesh is a damp proofing meshed membrane for use either internally or externally. With its 3mm stud, Newton 503 Mesh is just over 3.5mm in overall thickness, and is the preferred meshed membrane where space is of a premium. Its high quality meshed surface provides an excellent 'key' for lime mortars, renders, plasters or dabbed plasterboard.

Newton 503 Mesh is guaranteed against deterioration for 30 years, and has a life expectancy of at least 50 years (DIN 9001:2000). Newton 503 Mesh is inert with high pressure stability. It is highly resistant to water, alkalise, saline solutions and organic acids, and is not effected by minerals. It is also resistant to bacteria, fungi and other small organisms.

Associated Products:

  • Newton Multiplugs - for fixing the membrane to walls
  • Newton 800 Mesh Plugs - for fixing the membrane to walls above ground
  • Newton 800 Cob Plugs - for fixing the membrane to poorer quality substrate such as cob walls
  • Newton Waterseal Rope - for sealing plugs
  • Newton Waterseal Tape - for sealing membrane joints
  • Newton 800 Mastic - an alternative to sealing with rope and tape


  • Ideal for when space is of a premium
  • Provides an excellent 'key' for various finishes
  • Resistant to bacteria & fungi
Model: JN503M40
SKU JN503M40
Manufacturer: Newton Waterproofing
Packaging: individually
Size: 2 metres x 20 metres x 3mm
Coverage: 40m²
BBA Certificate: BBA certificateCertification No: 94/3010
Approved by the British Board of Agreement
