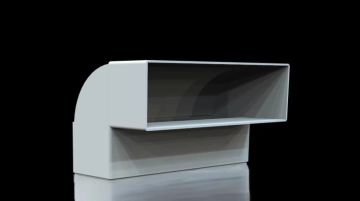

Newton CDM BaseDrain Inspection Port 90° Bend

Inspection access at changes of direction within BaseDrain systems

The Newton CDM BaseDrain Inspection Port 90° Bend is a purpose-made access component designed to be used in conjunction with the Newton CDM BaseDrain Inspection Port Kit. It connects the inspection port to the BaseDrain drainage conduit, and creates a practical access point for inspection and maintenance.

Maintainable drainage is fundamental to the long-term performance of Type C cavity drain waterproofing systems. By incorporating accessible inspection points at key locations, servicing and maintenance can be carried out more effectively, helping the system continue to operate as intended.

Typical Applications

• Creating a 90° inspection access point within Newton CDM BaseDrain perimeter drainage systems
• Supporting maintainable Newton CDM Type C cavity drain waterproofing installations

Product Benefits

• Helps support maintainable drainage design within Newton CDM waterproofing systems
• Supports long-term performance through improved access for servicing and maintenance

You May Also Need…

Additional BaseDrain components help complete the drainage layout and support reliable water collection and discharge within a Newton CDM cavity drain waterproofing system.

• Newton CDM BaseDrain Inspection Port Kit (4 Ports) — Required to create inspection access points within the drainage system
• Newton Basedrain Drainage Channel 2m — Main perimeter drainage conduit installed at the wall/floor junction
• Newton Basedrain Corner Piece — Forms standard 90° drainage changes of direction
• Newton Basedrain Drainage Adaptor — Connects BaseDrain to 63mm pipework for discharge to a sump or safe drainage

Permagard – specialists in Newton CDM cavity drain waterproofing

Permagard supply a comprehensive range of Newton CDM cavity drain waterproofing components, supporting maintainable below-ground waterproofing systems from specification through to installation. Our technical team work closely with contractors and designers to help ensure correct system detailing, component selection and long-term performance.

For guidance on drainage detailing, inspection access points or Newton CDM system design, contact our technical team on 0117 982 3282 or email [email protected].
