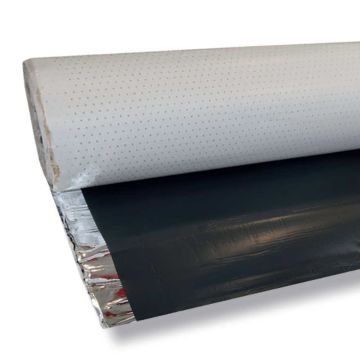

PermaSEAL Self-Adhesive Tanking Membrane 15m²
A powerful bitumen-based self-adhesive membrane ideal for tanking external structures in conjunction with PermaSEAL Geodrain membranes.
Self-adhesive bitumen membrane
PermaSEAL Self-Adhesive Tanking Membrane is designed to protect below-ground structures from water ingress. With a powerful bitumen adhesive, it is an efficient way to tank an external retaining wall before applying a PermaSEAL 8 Geodrain membrane. It forms part of a reliable external waterproofing system, protecting below ground structures from water ingress.
Each PermaSEAL tanking membrane brings together the following elements:
- a cross-laminated and tough Valeron film that is puncture and tear resistant, and offers immediate protection against rain and UV
- a powerful sealing adhesive incorporating bitumen rubber to provide an effective seal on a range of substrates
This combination creates a crack-bridging tanking membrane that is tear-resistant and flexible, making it ideal for external applications. It also saves time as you can install your GeoDrain Membrane system immediately after application of this tanking membrane.
Uses of PermaSEAL Self-Adhesive membrane
This bitumen-based self-adhesive tanking membrane is suitable for the following applications:
- underground structures such as cellars and basements
- retaining walls in gardening and landscaping
Installing a self-adhesive membrane
PermaSEAL self-adhesive membrane is easy to install even in tight spaces. It can be quickly cut to size and applied like wallpaper, providing an immediate seal to a range of substrates.
Make sure the surface is clean, free of debris and smooth with any sharp edges removed. Cavities should also be repaired with a suitable mortar.
Once the surface is suitably prepared, you can apply a bituminous primer. Follow manufacturer’s instructions to determine the correct amount of primer for your conditions.
Ideally you want to apply the self-adhesive membrane on the same day as priming.
Applying the self-adhesive membrane
Follow the manufacturer's instructions closely (supplied with the product). The following is a basic guide to installation.
Cut the PermaSEAL sealing membrane to length before rolling it back up. You can now remove the protective layer of paper from the underside section by section, sticking the membrane sheet onto the surface from top to bottom. Push firmly to ensure a good seal, starting at the centre of the membrane and moving outwards.
Any joints between subsequent layers of membrane should overlap by a minimum of 100mm. You need to use a pressure roller on all joints to make sure a good seal is achieved. For end overlaps, aim for 150mm.
Important note: Store the self-adhesive membrane upright and on warm days, in a cool and shady place.
PermaSEAL - Complete Solutions. Made Possible.
Our PermaSEAL range is a complete system for internal and external waterproofing of below ground structures. It represents technical excellence and value for money.
Our self-adhesive bitumen membranes are trusted by professionals. If you have any questions about your external waterproofing job then our technical team is available to help. Call us on 0117 982 3282.
- Quick and easy to apply
- Suitable for application to a range of substrates including masonry and ICF
- Puncture & tear-resistant
- Crack-bridging qualities
- 1.5mm thickness
- Complies with EN 13969, EN 14967
- Manufactured in Germany
- Conforms to BS 8102:2022 – Code of practice for protection of below ground structures against water from the ground as a Type A (Barrier) System.
|Size:||1m x 15m (15m²)|
|Dilution:||Ready to use|
|Coverage:||Up to 15m² depending on application and jointing|
|Country of Manufacture:||Germany|
