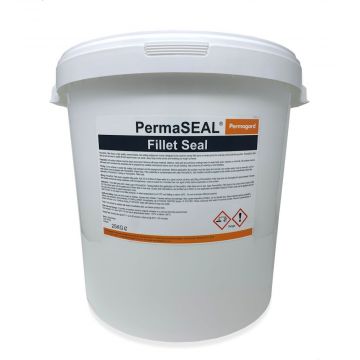

PermaSEAL Fillet Seal 25kg

Create high quality fillet joints quickly at vulnerable points such as wall to floor junctions.

READ MORE...

Availability: In stock

You're logged into: TRADEZONE

RRP £60.00 Excl. VAT
£39.50 Excl. VAT £47.40 Incl. VAT
Description

Tanking Fillet Seal

A high quality, cement-based, fast-setting mortar designed to create fillet joints at weak points such as the wall and floor junction. This fillet sealant should be used at vulnerable stress points such as wall to floor and wall to wall junctions when waterproofing with a tanking slurry.

Fillet seals create a smooth transition between horizontal and vertical surfaces. This reduces the risk of leaving an unsealed area during structural waterproofing.The product can also be used as a fillet seal repair mortar to rapidly fill and repair broken out areas, deep lying mortar joints and for levelling out rough surfaces.

Creating a Fillet Seal

Preparation

All surfaces need be clean and free of dust and residue before application.  Dry surfaces should be fully wetted out. You want the background to be damp but not wet, with any surface water removed, before applying the fillet seal.


Note: If the substrate is contaminated with salts, you need to apply PermaSEAL Salt Inhibitor to the surface prior to the fillet sealant.

Mixing

To create the mortar, you need to add 3.5 to 4 litres of clean water to a clean mortar tub before adding 25kgs of the fillet seal powder. Mix thoroughly for around three minutes with mechanical mixing equipment until homogeneous. You should then leave it to stand for two minute before briefly mixing again before applying it to the surface.


Application

Apply to surface with a trowel or fillet tool. Full surface layers can be applied up to 20mm thick. Cracks and indentations can be filled up to 50mm in one application and feather finished. Further coats can be applied once the first coat is dry enough to support further coats.

How to create a fillet joint

You can create a fillet joint in two ways depending on the risk. Risk increases with the level of hydrostatic pressure being exerted on the joint.

Low Risk Areas

Apply a coat of PermaSEAL Tanking Slurry to the area 100mm up the wall and 100mm across the floor covering the joint. Whilst still tacky, you should apply the Fillet Seal to the area, rounding off the fillet to create a smooth curve across the junction. Allow the sealant to dry for at least 1 hour before over coating.

PermaSEAL Fillet Seal Tech Drawing

High Risk Areas

Cut a chase into the floor at the wall floor joint 20mm x 20mm deep, cutting into the wall where possible. Add the tanking slurry to the area 100mm up the wall across the chase and 100mm onto the floor. Whilst still tacky, you should apply the Fillet Seal to the area, rounding off the fillet to create a smooth curve across the junction. Allow the sealant to dry for at least 1 hour before over coating.

PermaSEAL Fillet Seal Tech Drawing 2

Curing

PermaSEAL Fillet Seal is a cement-based mortar so will dry with the same characteristics as concrete. It is essential that the coating does not dry too fast as cracking could occur.

Initial Set @ 20°C = 60 minutes

Working Time @ 20°C = Up to 30 minutes

Coverage - 1.7kg as a filler per litre void or per mm thick layer/m2 and approx. 2-3kg linear metre as a fillet seal.



Related Content

Read our Tanking a Cellar Guide or find out how to Waterproof a Garage with the help of PermaSEAL Fillet Seal.

Features:

  • Simply add water on site
  • Full surface layers can be applied up to 20mm
  • Cracks and indentations can be filled up to 50mm in one application
  • Very fast development of strength
  • Non shrink - sets crack free
  • Resistant to water and frost
  • Breathable
Specification
Specification
Model: PFS25
SKU PFS25
Manufacturer: Permagard
Packaging: Individual unit in a bucket
Size: 25Kg Unit
Dilution: 3.5 to 4 litres of clean water per 25kg of powder
Coverage: 8 -12.5 liner metres as a fillet seal (2-3kg/m) or 1.7kg as a filler per litre void or per mm thick layer/m²
Country of Manufacture: United Kingdom
