Wall Tie Kit – Replace Cavity Wall Ties!
The Easi-Fix Mechanical Replacement Wall Tie Kit is a reliable, cost effective and easy way to replace corroded wall ties in a cavity wall. Our patented high strength neoprene wall ties are the quickest way to replace wall ties on the market. We’ve sold over a million units to date.
Our DIY wall tie kit is designed to cover approximately 20 metres at a coverage rate of 2.5 ties per m². Remember, this does not take into consideration closer installation around openings such as windows and doors.

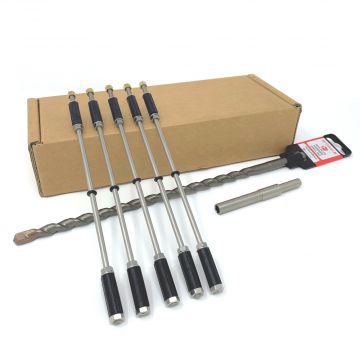

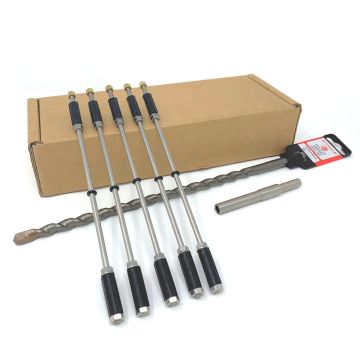

Included in the replacement wall tie kit:
- 50 x Easi-Fix Neoprene Wall Ties (a patented high strength, single fix neoprene remedial wall tie that sets new standards in replacement wall ties)
- 1 x Unique Easi-Fix Auto key
- 1 x 10mm x 310mm Armeg SDS Drill bit
Important note: to use this remedial wall tie kit you will require a drill with a variable torque settings and that has hammer and driver modes to fix the ties.
We also provide a replacement wall tie kit for bigger jobs.
Please see the technical data sheet in the Downloads tab for fixing instructions for our Easi-Fix replacement wall ties. You can also read our guide to wall tie replacement.
Replacing cavity wall ties
The patented Easi-Fix neoprene wall tie is simply installed into a pre-drilled 10mm pilot hole. The unique auto key (provided in our DIY wall tie kit) is attached to a drill driver and placed over the end of the replacement wall tie onto the brass nut. Then you can tighten the wall tie slowly with the drill.
Once the internal end of the replacement wall tie is tightened, the brass nut will then run down the thread on the outer side and tighten the external fixing. The tie at this point is fixed and you are ready to move onto the next hole. When you’ve installed all your ties at the required spacing, you can be confident that structural integrity has been restored.
All Easi-Fix replacement wall ties should be installed in accordance with the advice given in BRE Digest 329 and BRE Digest 401.
Easi-Fix – Specialist Solutions. Made possible.
If you have any questions about the types of wall ties you need, how to use our wall tie kit or how to replace failed wall ties then contact our technical experts on 0117 982 3282. At Permagard, we manufacture and stock a wide range of structural repair products and are always happy to offer advice.
- Patented replacement wall ties
- Smaller convenient DIY kit
- Easy and quick to install
- Manufactured in the UK
- 304 Stainless steel bar
- 25 years industry use
Model: WTKN50 SKU WTKN50 Manufacturer: Permagard Packaging: As a kit Size: 10mm x 200mm / 213mm / 225mm Coverage: up to 20m² @ 2.5 ties per m² Country of Manufacture: United Kingdom
