Newton 520 Eco Floor Membrane 2m x 10m

£180.00 Ex VAT
£216.00 Inc VAT

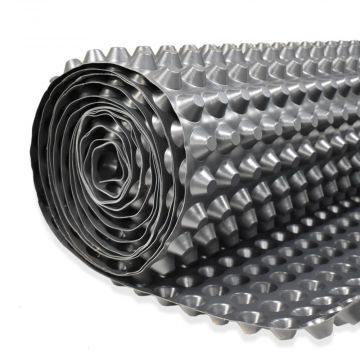

A recycled 20mm cavity drain membrane from Newton with high drainage capacity - designed for waterproofing basement floors.

Newton 520 High Drainage Basement Floor Membrane

Newton 520 Eco is a cavity drain membrane for basement floors. It is made entirely from recycled HDPE plastic. Newton 520 is a key component of a ‘Type C’ cavity drain system designed to protect basements from water ingress and flooding.

Newton 520 is a high drainage capacity basement floor membrane. The 20mm cavities are able to deal with larger volumes of water ingress. Once installed it provides peace of mind for property owners at risk from flooding.

Uses of Newton 520 Eco

Newton 520 is a floor membrane and a part of Newton System 500 - a ‘Type C’ basement waterproofing system. It is designed for waterproofing earth-retaining structures under ground where the risk of large volumes of water ingress is present.

Installing Newton 520 Eco

Newton 520 is quick to install. The product is simply rolled out over the concrete floor or over the Newton Fibran Insulation and joined with Newton Overtape.

Where Newton 520 meets the wall junction it can be sealed to the upstand of the drainage channel, the wall membrane or Newton Condensation strip with Newton Overtape. Follow manufacturer’s instructions. This basement floor membrane should be installed along with drainage channels and a Newton sump pump system to provide protection for property owners.

Finishing: Once the membrane has been installed you need to protect it with a screed, a timber floor on a fixed lattice, insulation or underfloor heating.

Permagard - Providing Solutions. Inspiring Confidence

Permagard are proud to stock a wide range of Newton membranes and waterproofing products. If you have any questions about Newton 520 Eco cavity drain membrane or basement floor membranes in general please contact our expert team on 0117 982 3282.


  • Quick to install
  • Made from 100% recycled materials
  • Part of Newton System 500
  • Guaranteed against deterioration for 30 years
  • A life expectancy of at least 100 years
  • Rot proof
  • Resistant to bacteria, fungi, chemicals in groundwater, as well as acids, alkalines, salts and hydrocarbon contamination
  • Can be used to create a Grade 3 environment to BS 8102:2009
