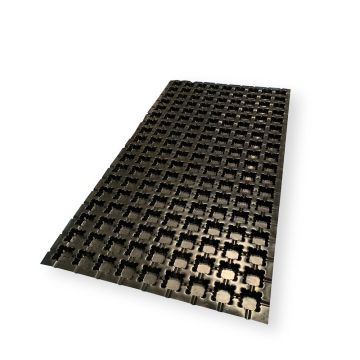

PermaSEAL 40 Green Roof Membrane

High performance 40mm intensive green roof membrane providing huge drainage and water storage capacity. Acts as both a drainage layer and large volume water storage membrane as part of an intensive green roof system for commercial and residential projects.

Read More

Availability: >In stock



RRP £40.00 Ex VAT
£32.00 Ex VAT £38.40 Inc VAT
Description

Intensive green roof drainage membrane - 40mm Studs

PermaSEAL 40 is an intensive green roof membrane with impressive water storage capacity and drainage capabilities. The 40mm deep perforated cavities provide a water storage capacity of approx 15 l/m². This makes it ideal for green areas designed to do without irrigation for extended periods. It can support a wide variety of vegetation - plants, trees, and shrubs as well as be used in walkable and drivable deck paving drainage applications.

This extremely high performance drainage and water storage membrane layer is designed for intensive green roofs. It provides more drainage and water storage capacity than our PermaSEAL 20P Green Roof Membrane. This makes it suitable for very large drainage lengths and/or very low roof slopes. It also has impressive compressive strength of approximately 200kN/ m² or 20 tonnes per m², ideal for also laying beneath paving, slabs, drives with a gravel bedding.

As a green roof drainage membrane, PermaSEAL 40P is perforated to allow water to pass through to the drainage space below. This prevents too much water accumulating and causing damage to the roots as well as preventing the sedum, grass or vegetation from becoming saturated.

Uses of PermaSEAL 40 Intensive Green Roof membranes

Our green roof drainage and storage membrane is suitable for intensive green roof systems in both horizontal applications. It is designed for the following:

  • commercial and residential roofs including many storeys up
  • inverted roofs
  • balcony / terrace
  • underground car parks
  • ground level with basement living areas
  • walkable and drivable decks
  • hard-landscaping designs
  • roof gardens

Typically PermaSEAL 40P Green Roof is used in conjunction with a primary waterproof coating above decks and flat roofs. As the membrane is perforated, it is also suitable for inverted warm roof applications.

Installing a PermaSEAL Intensive Green Roof System

Once a primary waterproofing layer has been applied, you should then add a root barrier/slip layer. Once this is complete, you can lay the PermaSEAL 40P intensive green roof drainage membrane slabs horizontally across the length of the roof with the cavity openings facing up. You should then cut the membrane to size where required.

Joints should be acheived by butt jointing the membrane slabs next to each other, this will suffice for most applications but for added piece of mind some contractors may join each butt joint with PermaSEAL Overtape if you want additional root protection. PermaSEAL Overtape is a single sided waterproof butyl tape which can simply be stuck over the joint to act a root barrier and waterproof jointing strip.

A separate high quality geotextile layer is then installed over the laid surface. The planting substrate can now be applied directly to the intensive green roof membrane.

Note: In walkable areas without vegetation, no geotextile is used and the cupsated cavities are filled.

For more information refer to our green roof design and construction guide.

Other products in the PermaSEAL intensive green roof system

PermaSEAL Root Barrier & Separation Layer – used as a slip layer/root barrier membrane between the primary waterproofing and PermaSEAL 40P Green Roof.

MB2K Flexible Waterproofing Compound – the primary waterproofing layer

Kiesol MB Waterproofing Primer – primer applied prior to MB2K application

PermaSEAL - Complete Solutions. Made Possible.

It is important that you select the correct intensive green roof membrane to suit your requirements. Our green roof drainage membranes function as part of a wider intensive green roof system. Please contact our technical department if you have any questions. Call us on 0117 982 3282.

Features:

  • water storage capacity of approx 15 l/m²
  • huge drainage capacity of i = 0.10; approx. 3.78 l/square metre - ideal for large drainage lengths easy to install
  • long lasting - guaranteed against deterioration for 30 years
  • life expectancy equal to the design life of the structure (DIN 9001:2000)
  • high compressive strength
  • tough & durable - pressure resistance of approx. 200 kN/m² and compressive strength of approx. 20 tonnes per m².
Specification
Specification
Model: PS40P
SKU PS40P
Manufacturer: Permagard
Packaging: Individual Slab
Size: 1m x 2m (2m²)
Dilution: n/a
Coverage: 2m²
Country of Manufacture: United Kingdom

Need more information?

Speak to our technical experts.
0117 982 3282
