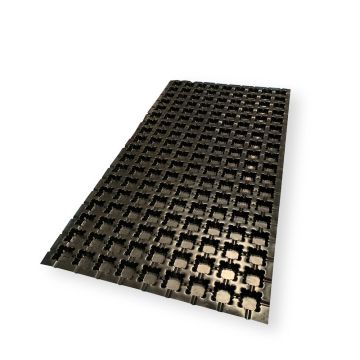

PermaSEAL PRO 60P Green Roof Drainage & Storage Membrane 2m²
High performance 60mm intensive green roof membrane providing huge drainage and water storage capacity. Acts as both a drainage layer and large volume water storage membrane as part of an intensive green roof system for commercial and residential projects.
Intensive green roof drainage membrane - 60mm Studs
PermaSEAL PRO 60P is an intensive green roof membrane with impressive water storage capacity and drainage capabilities. The 60mm deep perforated cavities provide a water storage capacity of approx 20 l/m². This makes it ideal for green areas designed to do without irrigation for extended periods. It can support a wide variety of vegetation - plants, trees, grass and shrubs as well as being used in walkable and drivable deck paving drainage applications.
This extremely high performance drainage and water storage membrane layer is designed for intensive green roofs. It provides more drainage and water storage capacity than our PermaSEAL 20P Green Roof Membrane. This makes it suitable for very large drainage lengths and/or very low roof slopes. It also has high compressive strength of approximately 200kN/ m² or 20 tonnes per m², ideal for laying beneath paving, slabs, drives with a gravel bedding.
As a green roof drainage membrane, PermaSEAL PRO 60P is perforated to allow water to pass through to the drainage space below. This prevents too much water accumulating and causing damage to the roots as well as preventing the sedum, grass or vegetation from becoming saturated.
Uses of PermaSEAL PRO 60P Intensive Green Roof membranes
Our green roof drainage and storage membrane is suitable for intensive green roof systems in many horizontal applications. It is designed for the following:
- commercial and residential roofs including many storeys up
- inverted roofs
- balcony / terrace
- underground car parks
- ground level with basement living areas
- walkable and drivable decks
- hard-landscaping designs
- roof gardens
Typically PermaSEAL PRO 60P Green Roof is used in conjunction with a primary waterproof coating above decks and flat roofs. As the membrane is perforated, it is also suitable for inverted warm roof applications.
Installing a PermaSEAL PRO Intensive Green Roof System
Once a primary waterproofing layer has been applied, you should then add a root barrier/slip layer. Once this is complete, you can lay the PermaSEAL PRO 60P intensive green roof drainage membrane slabs horizontally across the length of the roof with the cavity openings facing up. You should then cut the membrane to size where required.
Joints should be acheived by butt jointing the membrane slabs next to each other, this will suffice for most applications but for added piece of mind some contractors may join each butt joint with PermaSEAL Overtape if you want additional root protection. PermaSEAL Overtape is a single sided waterproof butyl tape which can simply be stuck over the joint to act a root barrier and waterproof jointing strip.
A separate high quality geotextile layer is then installed over the laid surface. The planting substrate can now be applied directly to the intensive green roof membrane.
Note: In walkable areas without vegetation, no geotextile is used and the cupsated cavities are filled.
For more information refer to our green roof design and construction guide.
Other products in the PermaSEAL intensive green roof system
Root Barrier & Separation Layer – used as a slip layer/root barrier membrane between the primary waterproofing and PermaSEAL 60P Green Roof.
MB2K Flexible Waterproofing Compound – the primary waterproofing layer
Kiesol MB Waterproofing Primer – primer applied prior to MB2K application
PermaSEAL - Complete Solutions. Made Possible.
It is important that you select the correct intensive green roof membrane to suit your requirements. Our green roof drainage membranes function as part of a wider intensive green roof system and also our PRO Green Roof Range. Please contact our technical department if you have any questions. Call us on 0117 982 3282.
- water storage capacity of approx 20 l/m²
- huge drainage capacity of i = 0.05; approx. 6.81 l/square metre - ideal for large drainage lengths easy to install
- long lasting - guaranteed against deterioration for 30 years
- life expectancy equal to the design life of the structure (DIN 9001:2000)
- high compressive strength
- tough & durable - pressure resistance of approx. 200 kN/m² and compressive strength of approx. 20 tonnes per m².
|Size:||1m x 2m (2m²)|
|Country of Manufacture:||United Kingdom|
