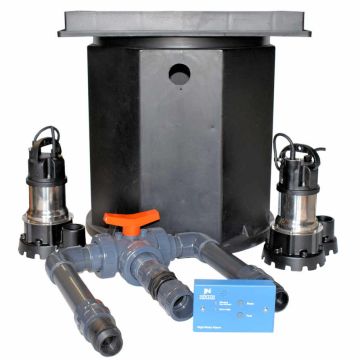

PermaSEAL PRO Dual Pump & Battery Backup System

Dual Pump System with Integrated Battery Backup Protection

The PermaSEAL PRO Dual Pump & Backup System is a complete, high-spec basement pumping solution designed to provide both mechanical redundancy and protection against mains power failure.

This integrated kit combines:

• PermaSEAL Basement Sump & Dual Pump System
• Newton Victron MultiPlus Inverter/Charger
• Newton 60Ah VRLA Telecommunications Battery

Together, these components provide a layered protection approach, combining dual pump redundancy with automatic battery backup to reduce the risk of basement flooding.

Already have a pump system? The battery backup components are also available separately as the Newton Victron Battery Backup Kit (60Ah) for upgrading existing installations.

Under normal operating conditions, the system operates on a duty/standby principle. The primary pump manages standard inflow, while the secondary pump is set to activate at a higher level in response to increased water ingress or primary pump failure.

In the event of mains power failure, the Victron MultiPlus inverter automatically converts stored 12V DC battery energy into stable 230V AC power in under 20 milliseconds, ensuring continued pump operation without interruption.

This system therefore mitigates two of the most common causes of basement flooding (pump failure and power outage) and can form part of a considered risk reduction strategy in line with BS8102:2022 guidance.

Typical Applications

This system is designed for use in projects where enhanced resilience and redundancy are required. Typical applications include:

• Cavity drain membrane (Type C) waterproofing systems
• Basements and below-ground structures at higher risk of flooding
• Projects requiring dual pump protection and battery back-up
• Installations where continuity of operation is critical

Benefits

This sump pump system with battery backup provides both installers and property owners with a high level of protection and peace of mind. It offers:

Dual Pump Redundancy

The dual pump configuration ensures continued operation if one pump becomes overwhelmed or fails. By introducing a secondary pump at a higher activation level, the system provides additional capacity during periods of elevated water ingress.

Automatic Operation During Power Failure

The Victron MultiPlus inverter automatically switches to battery power in under 20 milliseconds when mains supply is lost. This rapid transfer ensures continuous pump operation without manual intervention.

Maintaining pumping capacity during outages significantly reduces the risk of flooding during one of the most vulnerable failure scenarios.

Clean, Stable Power Supply

The inverter delivers true sine wave output, providing grid-quality electrical power to connected pumps. This supports reliable motor start-up and reduces electrical stress, helping to extend pump lifespan and maintain performance.

Reliable and Expandable Energy Storage

The included 60Ah VRLA AGM battery is maintenance-free, non-spillable and designed for long service life. With low self-discharge and high internal recombination efficiency, it provides dependable stored energy for emergency operation.

Additional compatible batteries can be connected in parallel to increase available capacity and extend pumping duration during prolonged outages.

Installation

PermaSEAL PRO Dual Pump & Battery Backup System is designed for professional installation. It is suitable for integration within basement waterproofing systems where reliability, serviceability and long-term performance are key considerations.

The kit includes the sump chamber, pumps, inverter, battery and associated components required to form a Type C waterproofing system.

For guidance on correct installation and system design, see our Sump Pump Installation Guide or explore our range of sump pump systems.

PermaSEAL - Complete Solutions. Made Possible.

At Permagard, we specialise in professional waterproofing systems. Our PermaSEAL range is trusted by contractors, specifiers and property professionals across the UK for reliable, long-term performance.

We supply complete, compatible systems (not just individual components), ensuring that pumps, sump chambers and battery backup units work together as intended.

Our in-house technical team offers free expert advice to help you specify the correct solution for your project. If you would like to discuss your basement or pumping system requirements, call us on 0117 982 3282.

Explore our full range of basement sump pump systems and drainage channels.
