PermaSEAL 8 Clear Kit is designed for floor and wall application.
PermaSEAL Clear Waterproofing Membrane Kit - 40m²
PermaSEAL 8 Clear is a high quality high density polyethylene (HDPE) membrane suitable for use in waterproofing structures below ground level (basements) and isolating damp walls above ground level. The stud depth of 8mm provides versatile use as both a wall and floor applied membrane. The membrane can be finished with baton and board or a metal track or independent wall infront.

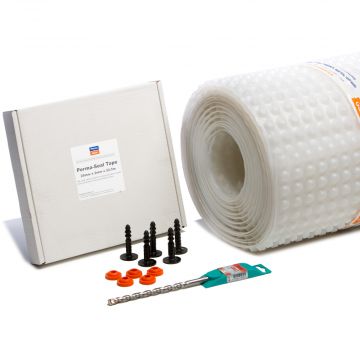

- 1 x PermaSEAL 8 Clear Waterproofing Membrane 2m x 20m (40m²)
- 1 x PermaSEAL Tape (for membrane jointing)
- 2 x PermaSEAL Brick Plug Super (bag of 100)
- 2 x PermaSEAL Brick Plug Sealing Washer (bag of 100)
- 1 x 10mm SDS Drill Bit
PermaSEAL 8 Clear is suitable for use in accordance with BS8102:2009 to provide Type 'C' drained protection to structures below ground providing a Grade 3 dry environment suitable for domestic or commercial use.
It is essential that if applied in this way it is used in conjunction with the PermaSEAL Sump and pump system (unless passive drainage is available on one side of the building) and that this is maintained throughout the lifetime of the installation.
PermaSEAL 8 Clear has a life expectancy of at least 50 years (DIN 9001:2000). PermaSEAL 8 Clear is an inert product with high compressive loading stability. It is highly resistant to water, alkalis, saline solutions and organic acids, and is not affected by minerals. It is also resistant to bacteria, fungi, and other small organisms.
Our innovative PermaSEAL Brick Plug Super in combination with the seal is used when fitting the PermaSEAL 8 Clear to the wall and if a below ground waterproofing system is being installed then it should be used with our Drainage Channel, Floordrain and sump and pump drainage systems.
PermaSEAL 8 Clear Waterproofing Membrane can accept a range of wall and floor finishes. PermaSEAL Brick Plug Super accept screws which allow for the addition of batons and metal lath systems which can be insulated before the addition of plasterboard finish. Fixtures, fittings walls and staircases can be built off PermaSEAL 8 Clear membrane. When used as a floor membrane insulation, underfloor heating, screed and floating floors can all be accommodated.
PermaSEAL BBA approved waterproofing system
Our PermaSEAL waterproofing system has BBA approval, awarded by the UK’s leading building product certification body. Independent, expert-led and trusted by professionals, BBA certificates are a symbol of quality within the construction industry. You can use our PermaSEAL 8 and 20 membranes and related products safe in the knowledge they have been independently tested to ensure the highest quality levels.
- BBA Approved System
- 8mm stud depth providing 5.3 litres of drainage volume per m2
- High compressive load bearing strength 200kN/m2
- Waterproof, salt resistant, root resistant, contaminant resistant
- Easy to bend, form around windows, doors, vaulted ceilings etc
- Easy to cut with scissors
- Low and high temperature tolerances
|Packaging:||As a kit|
|Size:||2m x 20m x 8mm|
|CE Mark:||DIN EN 13967 : 2012|
Certification No: 19/5675
Approved by the British Board of Agreement
|Country of Manufacture:||United Kingdom|
Need more information?
Can I render or dot and dabb over the PermaSEAL 8 Clear Waterproofing Membrane?
No, the membrane is designed to be baton and boarded over or have a metal track or independent wall placed in front. You cannot bond to this membrane, you would require the PermaSEAL 8 Mesh Membrane for that application.
