These units are used in conjunction with a radon sump and associated pipe work, to finally discharge the gases to the outside.

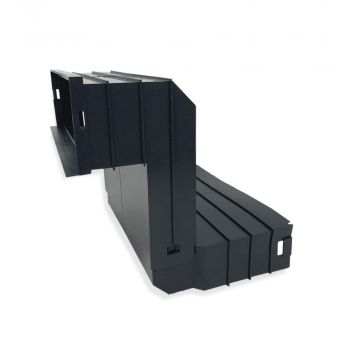

Adjustable Periscope Vent for Radon System
Fully adjustable periscope vent for use in combination with a radon system to allow escape of radon gas to the outside of a property. The periscope vent can be adjusted for a drop of 2-3 brick courses as standard or further with the addition of the extension piece which alows the unit to vent up to 5 brick courses down or further with multiple extension pieces.
The standard periscope vent will fit into a cavity wall with an external leaf of 100-102.5mm, a minimum cavity width of 50mm and an inner leaf of 100mm. Horizontal extension sleeves are available to accommodate thicker walls or wider cavities if required.
As a minimum requirement ventilators should be positioned at two opposite sides of the building so as to create a cross flow ventilation action if possible.
- Always use in conjunction with our accessories as they lock together.
- The airbrick and upper front opening of the Periscope Vent must be positioned above the finished external ground level - usually at the same level as the ground level DPC.
- The lower rear opening of the product must project down to the level of the underfloor void and must not be obstructed by the floor construction.
Permagard – Providing Solutions, Inspiring Confidence
If you have any questions about our range of Capital Valley products then contact our expert team for free technical advice on 0117 982 3282.
- Made in the UK
- Easy to install
- Click lock system
|Manufacturer:||Capital Valley Plastics|
|Country of Manufacture:||United Kingdom|
