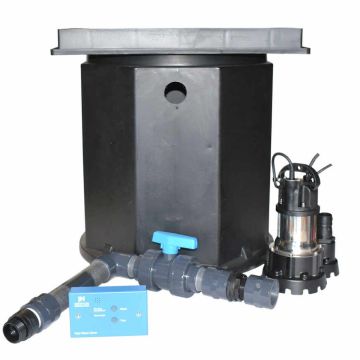

PermaSEAL PRO Single Pump & Battery Backup System
Complete single-pump basement sump system with 60Ah battery back-up for continued water removal during mains power cuts.
Single Pump Protection with Intelligent Battery Back-Up
The PermaSEAL PRO Single Pump & Battery Backup System is a complete basement pumping solution combining dependable groundwater removal with automatic protection against mains power failure.
This integrated kit combines:
- PermaSEAL Basement Sump & Pump System
- Newton Victron MultiPlus 12/500/20 Inverter/Charger Battery Back-Up Kit
- Newton 60Ah Victron Super Cycle AGM Battery
Under normal operating conditions, the TAS250 pump removes groundwater collected from the waterproofing system and discharges it safely away from the structure. The separate high water level alarm provides an early warning if water rises above the normal operating level.
If the mains electricity supply fails, the Victron MultiPlus inverter automatically converts stored 12V DC battery energy into stable 230V AC power in under 20 milliseconds. This allows the pump to continue operating without manual intervention during a temporary power outage.
Together, the matched components provide a convenient, coordinated solution for installations where a single sump pump is appropriate but continued operation during loss of mains power is also required.
Need a different configuration? If you already have a suitable sump pump system, the battery back-up components are also available separately as the Newton Victron Sump Pump Battery Backup Kit (60Ah). For mechanical pump redundancy as well as battery back-up, the PermaSEAL PRO Dual Pump & Battery Backup System adds a second TAS250 pump to protect against both power interruption and primary pump failure.
Typical Applications
This system is designed for professional waterproofing projects where reliable single-pump operation and power-outage resilience are required. Typical applications include:
- Type C cavity drain membrane waterproofing systems
- Basements and cellars requiring managed groundwater removal
- Single-pump installations where continued operation during temporary power cuts is required
- Light wells and other suitable groundwater collection points
Benefits & Key Features
The system combines a serviceable PermaSEAL sump pump installation with matched battery back-up equipment, providing practical benefits for installers and additional reassurance for property owners.
Reliable Single-Pump Water Removal
The PermaSEAL sump system includes a robust octagonal chamber, TAS250 automatic pump, locked and sealed recessed lid, internal pressure-rated pipework, non-return valve and quick-release shut-off valve.
The chamber provides eight large surfaces for inlet connections of up to 110mm using a suitable wall flange. Its flared base improves stability and helps resist flotation when correctly installed within the surrounding concrete.
Automatic Operation During Power Failure
The Victron MultiPlus inverter automatically changes over to battery power in under 20 milliseconds when mains supply is interrupted. The rapid transfer maintains the electrical supply to the pump without requiring the property owner to activate the system manually.
Continued pumping during an outage helps reduce the risk of water accumulating within the chamber and entering the basement waterproofing system.
Clean, Stable Power Supply
The inverter produces true sine wave 230V AC output, providing clean, grid-quality electrical power to the TAS250 pump. This supports dependable motor start-up, reduces electrical stress and helps the pump operate efficiently under load.
Reliable and Expandable Energy Storage
The included 60Ah Victron Super Cycle AGM battery is sealed, non-spillable and maintenance-free. It is designed for repeated cycling and has a stated service design life of 12 years or more under suitable operating conditions.
Additional compatible batteries can be connected in parallel to increase the available amp-hours and extend pumping duration during longer power outages. Each additional battery requires the appropriate link leads and system configuration.
High Water Warning and Serviceable Components
A separate battery-powered high water level alarm warns the property owner if water rises above the pump's normal operating level. The quick-release pump connection also makes it easier to remove the TAS250 for inspection and servicing.
Installation and Compatibility
This system is intended for professional installation. The sump chamber should be installed by an experienced waterproofing contractor, while the inverter, battery and associated electrical components must be installed by a suitably qualified and electrically competent person.
The Victron inverter and battery must be positioned in a dry, well-ventilated internal environment. Permanent access should also be retained for routine inspection, testing and servicing of the sump, pump, alarm and battery back-up equipment.
For further details, refer to the manufacturer documentation within the Downloads section or read our sump pump installation guide.
Choosing the Right Single Pump System
Both options provide the same complete PermaSEAL sump chamber and TAS250 pump. The PRO system adds automatic battery back-up for projects where continued pumping during mains power failure is required.
| Feature | PermaSEAL Basement Sump & Pump System | PermaSEAL PRO Single Pump & Battery Backup System |
|---|---|---|
| Pump Configuration | One TAS250 automatic pump | One TAS250 automatic pump |
| Operation During a Power Cut | Requires mains power unless separate back-up is installed | Automatic battery back-up with changeover in under 20ms |
| Battery System | Not included | 60Ah Victron Super Cycle AGM battery included |
| High Water Level Alarm | Included | Included |
| Best Suited For | Single-pump installations where a separate battery back-up is not required or is already provided | Single-pump installations requiring continued operation during temporary mains failure |
| Mechanical Pump Redundancy | Single pump | Single pump; choose the dual-pump system where duty/standby protection is required |
Not sure which configuration is appropriate? Our friendly, in-house technical team offers free expert advice to help you specify the right pumping solution. Call us on 0117 982 3282.
PermaSEAL - Complete Solutions. Made Possible.
At Permagard, we specialise in professional waterproofing and structural protection systems. Our PermaSEAL products are trusted by contractors, specifiers and property professionals across the UK for dependable, long-term performance.
We supply complete, compatible systems rather than isolated components, helping ensure the sump chamber, pump, alarm and battery back-up equipment work together as intended.
Our friendly, in-house technical team provides free expert advice throughout your project, from selecting the correct sump pump configuration through to installation and maintenance considerations. Call us on 0117 982 3282 or explore our complete range of sump pump systems.
Features
- Complete single-pump sump system for managed basement water removal.
- Automatic battery back-up keeps the TAS250 operating during power cuts.
- Rapid inverter changeover (<20ms) maintains pumping without manual intervention.
- True sine wave output provides clean, stable power for the pump motor.
- 60Ah maintenance-free AGM battery with a long service design life.
- Battery-powered high water alarm provides early warning of abnormal water levels.
